ASTM D3078 Negative Pressure Leak Tester Vacuum leakage tester vacuum chamber pressure leak tester

Name: ASTM D3078 Negative Pressure Leak Tester Vacuum leakage tester vacuum chamber pressure leak tester
Brand: Cell Instruments
Price: 1 USD

Quality ASTM D3078 Negative Pressure Leak Tester Vacuum leakage tester vacuum chamber pressure leak tester for sale

Place of Origin : China

Brand Name : Cell Instruments

Model Number : LT-01

MOQ : 1 SET

Price : Get An Offer

Packaging Details : Plywood Carton

Delivery Time : 3~5 days

Payment Terms : TT, LC

Certification : CE

Packaging material : Plastic,Film

Function : vacuum leak checking

Condition : New

After-sales service provided : Online support

Automatic grade : manual

Supply Ability : At Stock

Contact Now

Negative pressure leak tester is composed of the mainframe and the vacuum chamber. A test sample is placed into a vacuum chamber with water and the air above water level is evacuated by a venturi vacuum ejector. A pressure difference is created inside and outside the sample and leakage can be observed and identified when the sample is inflated and streams of bubbles appear.

Negative pressure leak tester uses vacuum ejector to generate stable vacuum environment.

1. The leak test requires no electricity

2. High leak test efficiency

3. Strong cast vacuum chamber

4. Different chamber sizes available

5. No calibration needed

6. No vacuum pump required

7. Easy installation, start-up and operation

8. Low maintenance

ASTM D3078 Negative Pressure Leak Tester Vacuum leakage tester vacuum chamber pressure leak tester

Negative pressure leak tester technical specification

Vacuum	0~-90KPa/0~-13PSI
Vacuum chamber size	Φ270 mm x 210 mm (H) (Customization available)
Gas source	Compressed air
Gas Pressure	0.7MPa/101.5PSI

Standards

ASTM D3078 , GB/T 15171

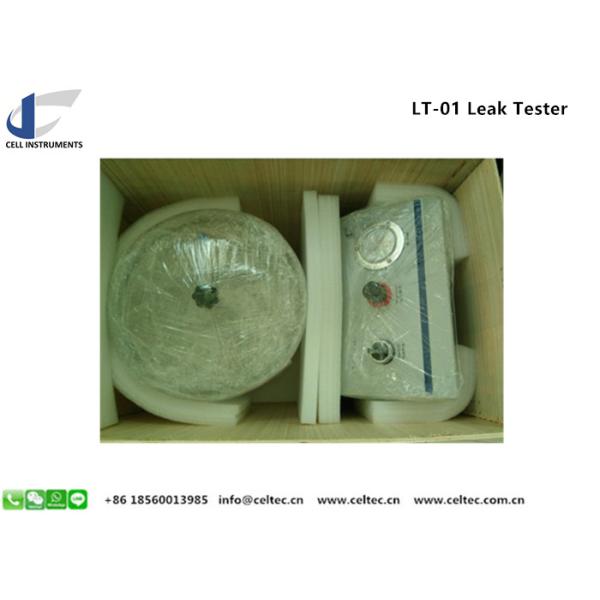

ASTM D3078 Negative Pressure Leak Tester Vacuum leakage tester vacuum chamber pressure leak tester Images
